Rancilio Water Treatment System Cartridge
Call Us for Expert Advice! 800-709-8210
Rancilio Water Filter System – Intended for use in filtering potable water to help keep water at 2-3 GPG, maintain the machine, and adhere to warranty terms. Contact 1st in Coffee for more information on this espresso machine water softener kit.
Whole Bean 2.2 pounds
Medium Roast - Case of 6
Standard Features
• Flow rate: 0.5 gpm (1.9 lpm).
• Hardness Capacity (based on 9 gpg) 1204 gallons.
• Scale, chloramines, chlorine taste & odor reduction.
• Hardness test kit included to allow proper blend setting.
• Sanitary Quick Change (SQC).
• Encapsulated cartridge design allows fast and easy cartridge change-outs.
• Connections included.

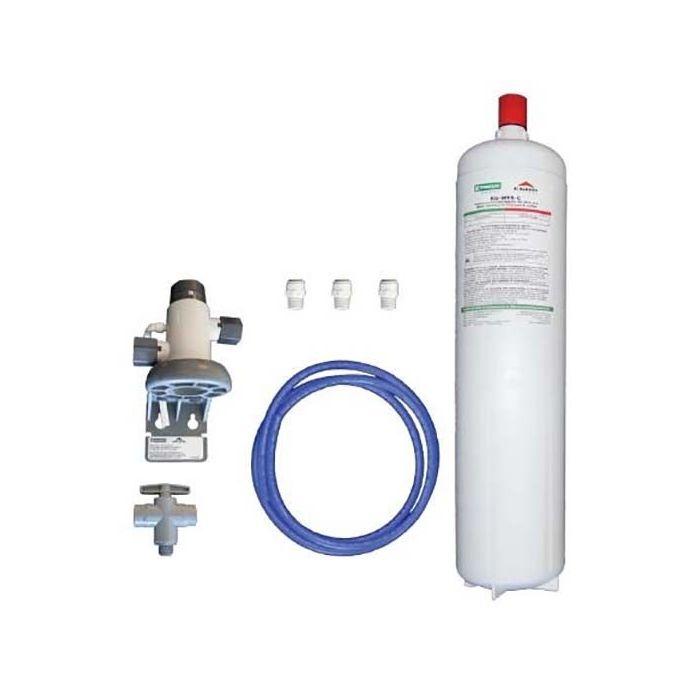

Accessories in the Box
• Rancilio Water Filter Cartridge
• Filter Head and bracket
• Flush valve
• Water hose
• 3 3/8” threaded tubing adaptors
Specifications
• 3/8” inlet and outlet plumbing connections available in FNPT
• Cartridges are sanitary in design, requiring no contact with the filter media during the cartridge change out
• Cartridges contain WAC resin and carbon block media wrap
• Cartridges do not require pre-activation
• Cartridges are o-ring seal type
• Operating pressure of 25-125 psi (172-690 kPa)
• Operating temperature of 40-100°F (4.4 – 37.8°C)
Space Requirements
• Allow 24”x5” for in-line filter. Filter can be mounted
behind the machine or under the counter.
• Allow a minimum of 3” (7.62 cm) clear space under
filter to facilitate filter change.
Water Connections
Dedicated cold water access line with standard female 3/8”
NPT fitting and manual shut-off valve within 4’ of the machine
required.
Water Quality Statement
The fact that water is potable is no guarantee that it is suitable for
coffee machines. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE: 30-70 psi
HARDNESS: 2-3 GPG (1 grain of hardness = 17.1 ppm)
Water entering the machine should have a water hardness level
of 2-3 GPG at all times. If the water supply is not within this range,
a dedicated water softener (if above 3 GPG) or mineral addition
cartridge (if below 2 GPG) is required for the coffee machine to
operate properly over time (see Rancilio Group North America Water
Quality Statement for further details).
Water Quality Statement
The fact that water is potable is no guarantee that it is suitable for
coffee machines. Your water supply must be within these general
guidelines:
SUPPLY PRESSURE: 30-70 psi
HARDNESS: 2-3 GPG (1 grain of hardness = 17.1 ppm)
Water entering the machine should have a water hardness level
of 2-3 GPG at all times. If the water supply is not within this range,
a dedicated water softener (if above 3 GPG) or mineral addition
cartridge (if below 2 GPG) is required for the coffee machine to
operate properly over time (see Rancilio Group North America Water
Quality Statement for further details).
